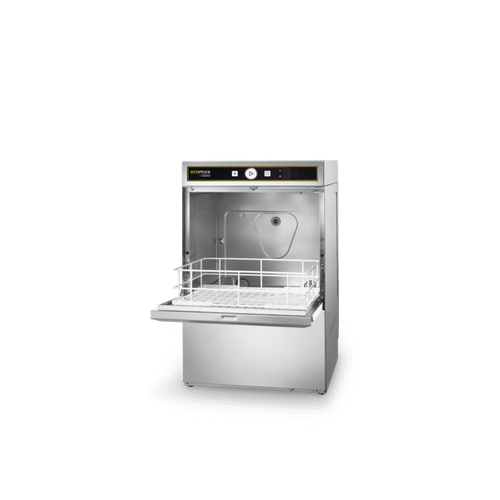

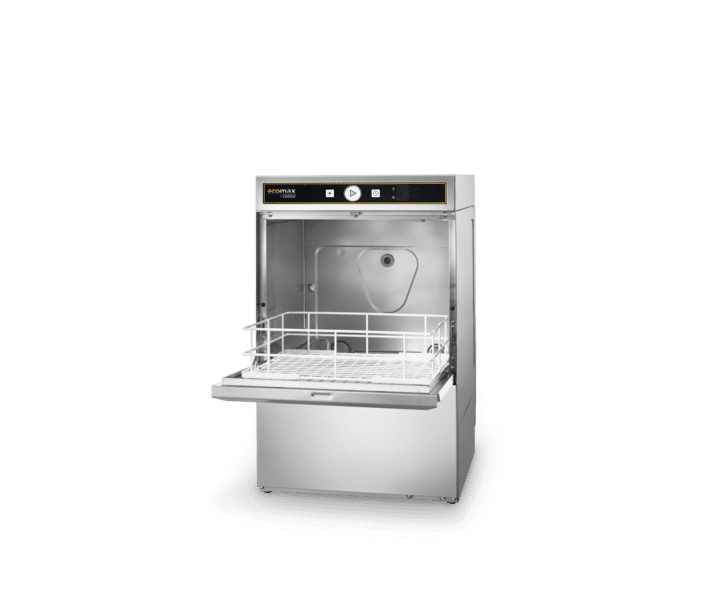

HOBART ECOMAX404-C Compact Glasswasher
$3,695.00
RRP $6,523.00
$3,695.00
Description
Specifications
Features
Review(s)

Compact, efficient and designed for dependable commercial performance, the HOBART ECOMAX404-C Compact Glasswasher is an ideal solution for bars, cafés, restaurants, pubs, clubs and hospitality venues where space is valuable and consistently clean glassware is essential.

With a compact footprint of just 436mm wide, the ECOMAX404-C is designed to fit comfortably into narrow bar and kitchen areas. Supplied with 150mm adjustable legs, its total installation height is just 850mm, making it particularly well suited to undercounter applications.

Three selectable wash cycles of 60, 120 and 180 seconds give operators the flexibility to match the cycle to the load, while an additional Hygiene programme can be used with HOBART Hygiene-Tab INTENSIV to assist with removing calcium carbonate and other deposits from the wash chamber. Simple single-button operation uses colour-coded machine status indicators, making everyday operation straightforward for busy hospitality teams.

Efficiency is another standout feature. The ECOMAX404-C uses just 1.8 litres of rinsing water per cycle, helping reduce water consumption during service. An integrated rinse pressure pump compensates for fluctuating or low incoming water pressure to support consistent wash results and also makes the machine suitable for use with HOBART's RO-S reverse osmosis water treatment system.

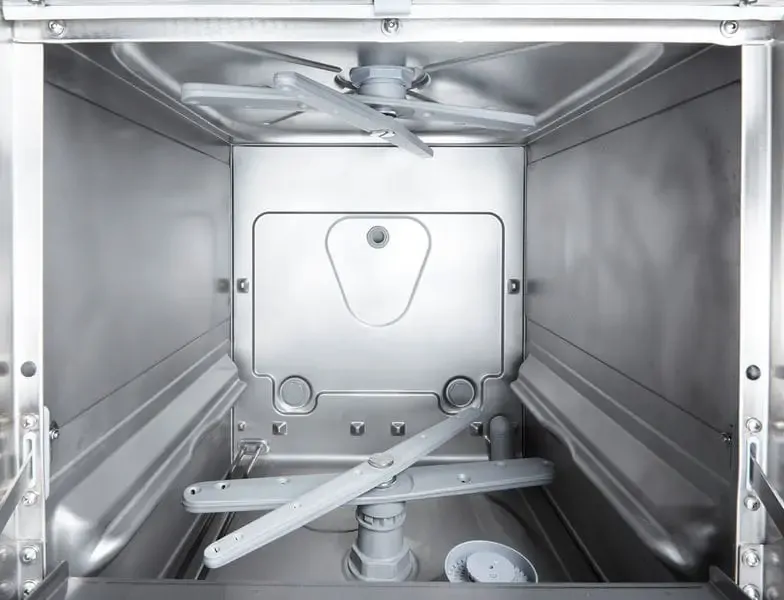

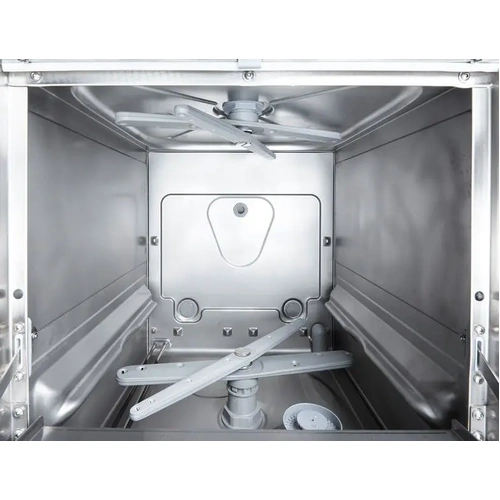

Rotating upper and lower wash and rinse arms distribute water throughout the wash chamber, while the double-skinned door and wash chamber help reduce heat and operating noise. The machine operates at a stated noise level of just 62 dB(A).

For straightforward installation, the ECOMAX404-C is supplied with a 17 × 14" rack and grid shelf supporting racks up to 400 × 400mm, together with fill and drain hoses, chemical pumps and a 15A single-phase plug and lead.

Designed and manufactured in Germany by HOBART and WaterMark approved, the ECOMAX404-C brings together compact dimensions, simple operation and reliable commercial glasswashing performance.

SKU: ECOMAX404

Brand: HOBART
Model: ECOMAX404-C
Product Type: Compact Commercial Glasswasher
Cycle Times: 60 / 120 / 180 seconds + Hygiene Cycle
Water Consumption: 1.8L per rack
Tank Capacity: 10L
Tank Heating: 1.8kW
Booster Loading: 1.8kW
Total Loading: 2.1kW
Wash Pump: 0.18kW / 120L/min
Power Supply: 240V / 50Hz / Single Phase
Electrical Connection: 15A
Maximum Rack Size: 400 × 400mm
Included Rack: 1 × 17 × 14" rack with grid shelf
Loading Height: 308mm
Noise Level: 62 dB(A)
Net Weight: 47kg
Gross Weight: 61kg
Machine Dimensions: 436(W) × 534(D) × 700(H) mm
Adjustable Legs: 150mm
Installed Height with Legs: 850mm
Country of Manufacture: Germany
Approval: WaterMark Approved

Installation Guide:

Power: 240V / 50Hz / Single Phase / 15A
Power Cord: 2,000mm
Water Supply Connection: R 3/4"
Supply Hose: 2,000mm
Required Water Flow: 5L/min
Flow Pressure: 0.5–6 bar (0.8–6 bar with softener)
Maximum Supply Water Temperature: 60°C / 35°C when used with RO-S
Drain Hose: 2,000mm, ID20/OD25
Drainage: Independent gravity waste to tundish

HOBART recommends water hardness of no more than 3°dH for machine protection; where water hardness exceeds this, a suitable integrated or external water softener is recommended.

  • Compact commercial glasswasher
  • Three selectable wash cycles – 60, 120 and 180 seconds
  • Additional Hygiene programme
  • Economical 1.8L rinse water consumption per cycle
  • Simple single-button control
  • Colour-coded machine status indication
  • Integrated rinse pressure pump for consistent wash results
  • Suitable for use with HOBART RO-S reverse osmosis water treatment
  • Rotating upper and lower wash and rinse arms
  • Double-skinned door and wash chamber to reduce noise and heat
  • Quiet 62 dB(A) operating noise level
  • Supports racks up to 400 × 400mm
  • 308mm loading height
  • USB connection for easier servicing by a HOBART technician
  • Optional chemical refill signal
  • Supplied with chemical pumps
  • Supplied with fill and drain hoses
  • Supplied with 15A single-phase plug and lead
  • Designed and manufactured in Germany by HOBART
  • WaterMark approved
